Flight Controls            Rebuild: 2008-09                                      Last update: January 2025

News 2023
Many pilots also a real B737 pilot told me the elevator feel force was too weak.

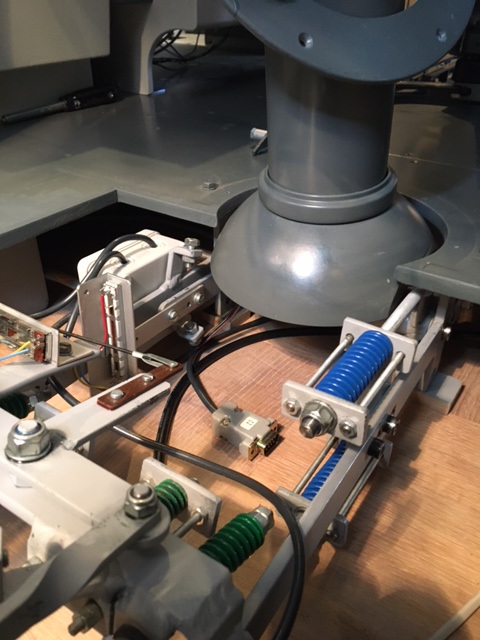

 I have now exchanged the springs with some double so heavy springs. (blue one)

In order to be able to change the springs, it was necessary to cut up the cockpit floor.
At the same time a good opportunity to have the control unit inspected after 14 years of faithful service hidden under the floor.

Measuring the max elevator force shows now almost 3 kg.

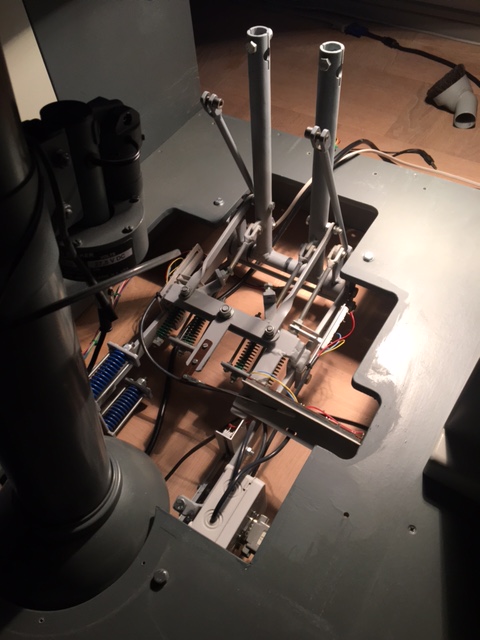

Rebuild unit ready for installation in simulator.

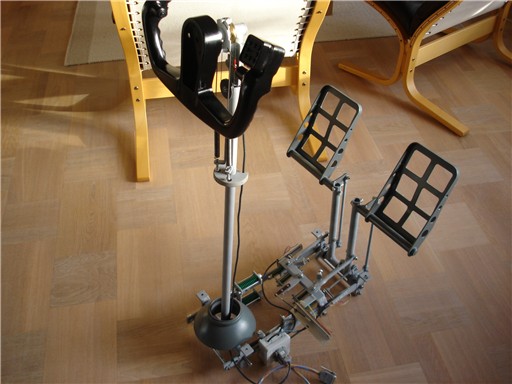

Potentiometers directly on controls replace my old "Joystick by Cable" solution

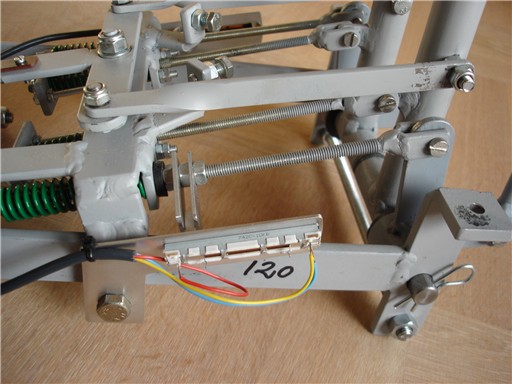

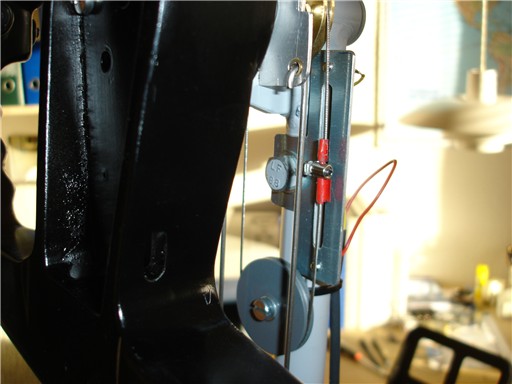

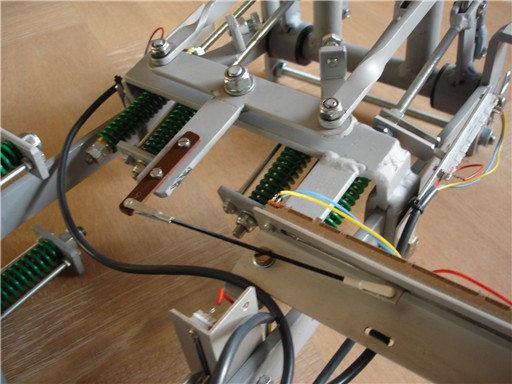

RC-links transfer Rudder Pedal movement to a  slide potentiometer (10 K Ohm/ 100mm)

Right Toe Brake potentiometer (10K Ohm/60mm)

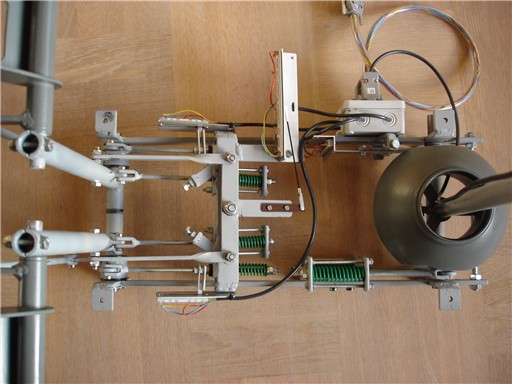

Rudder movements are enclosed by heavy adjustable stops

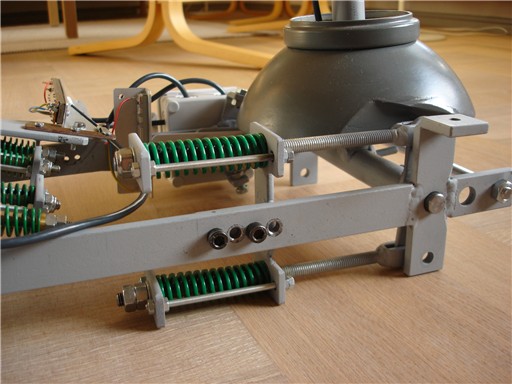

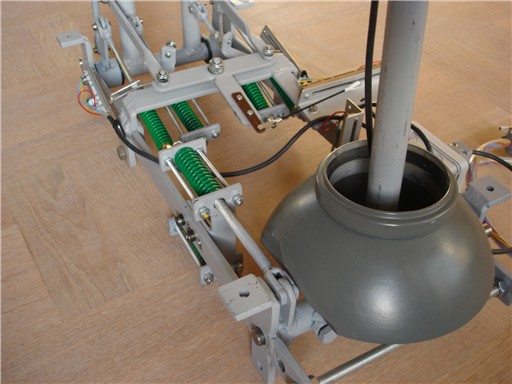

Heavy springs centre the stick (elevator) and perform feed back called "feel".
In the real plane elevator feel is hydraulic computer operated.

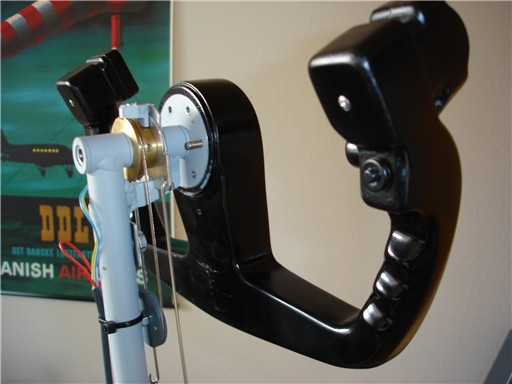

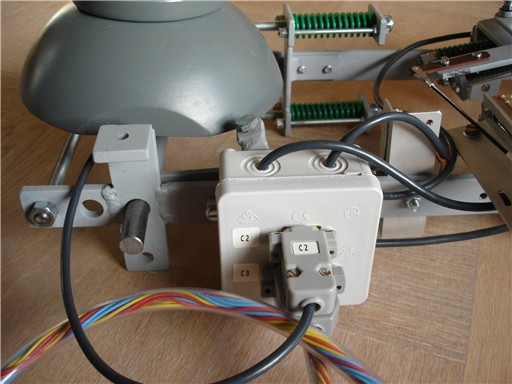

Control Wheel. Two springs perform feel and centre the Wheel

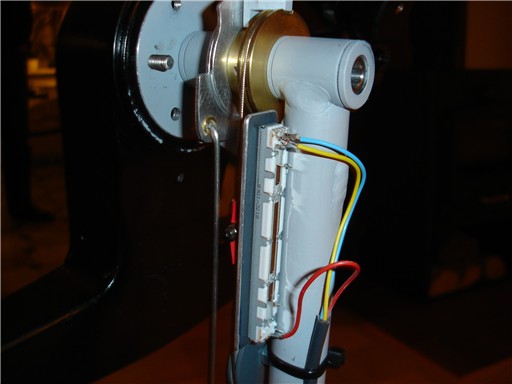

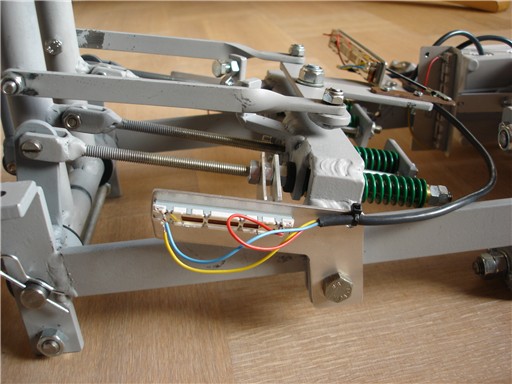

 Slide potentiometer for Ailerons (10K Ohm/60mm)

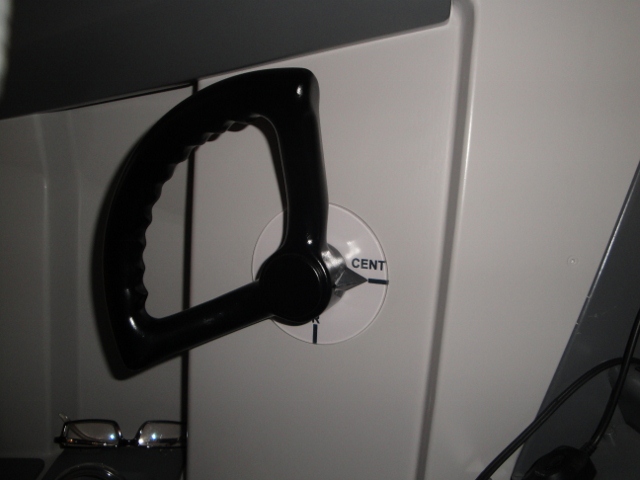

Nose wheel steering tiller (2011)

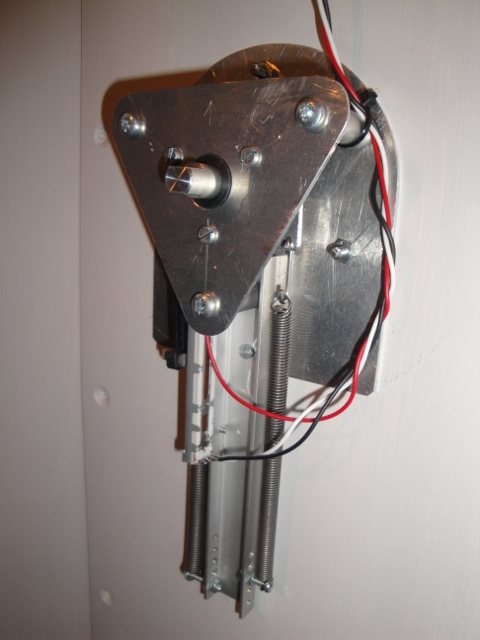

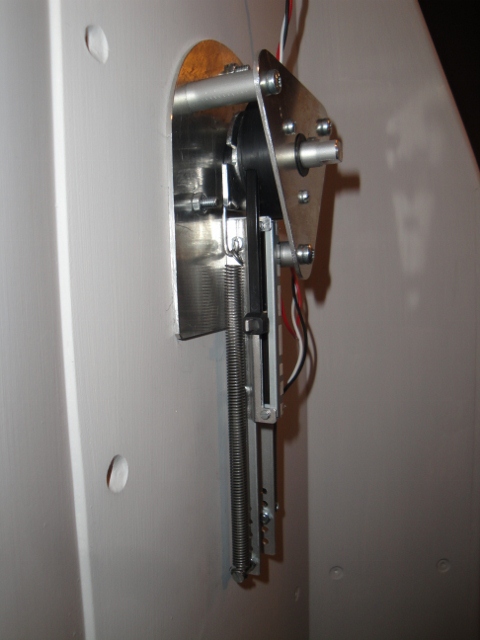

Nose wheel steering potentiometer. (10K Ohm/ 60 mm)
