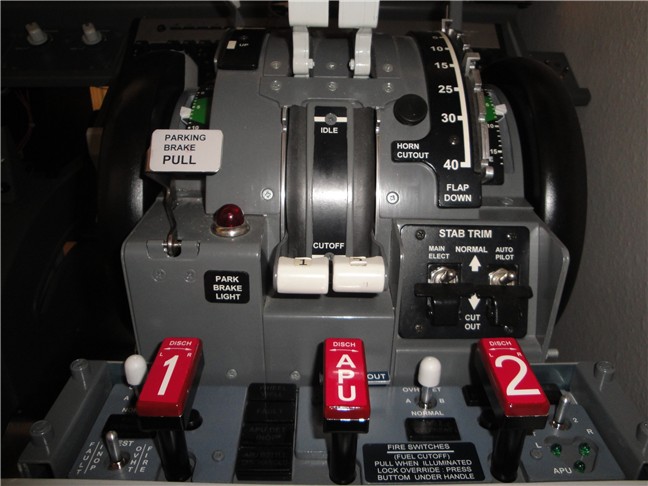

Flight Simulator      Boeing 737NG

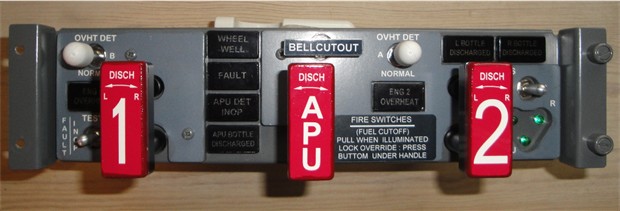

Engine Fire Panel      Build: 2010-11                                               Last update: April 2014

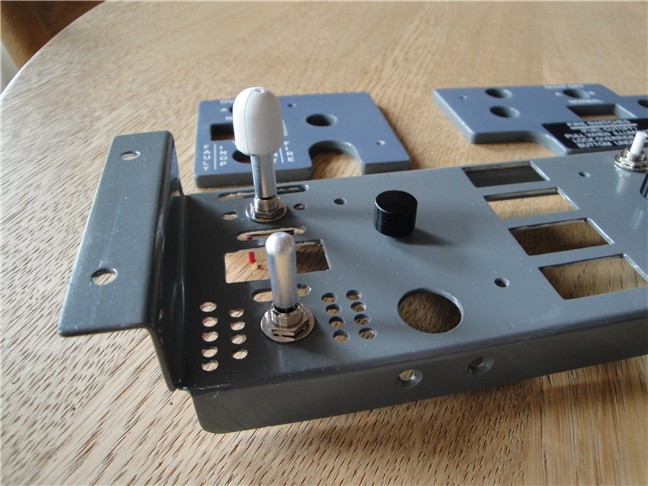

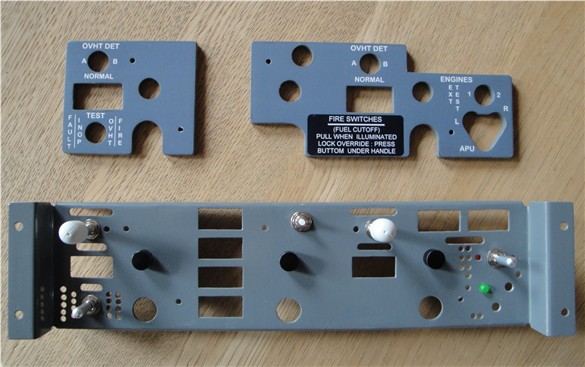

Base in 1,5 mm alu sheet and light panels in 5 mm acrylic

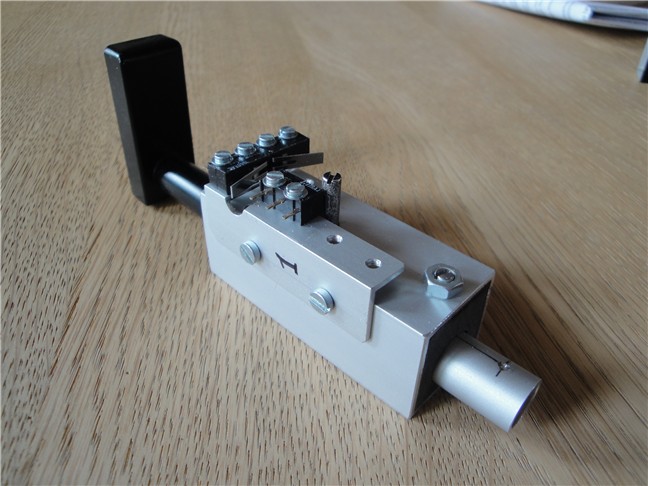

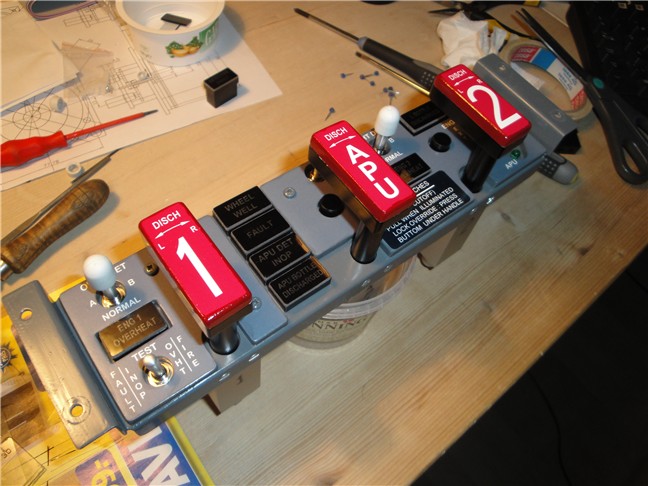

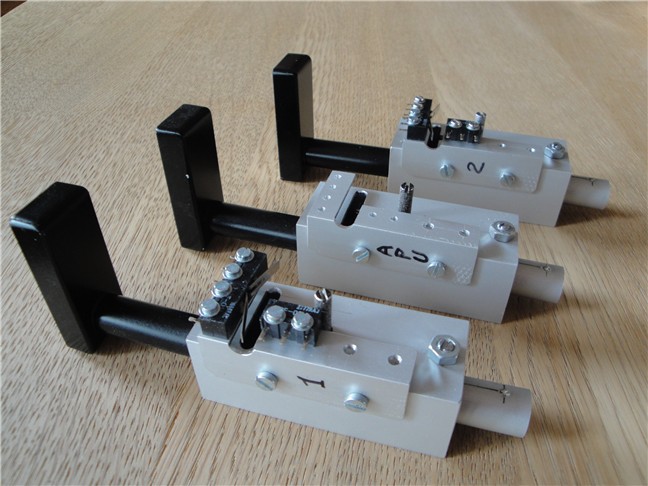

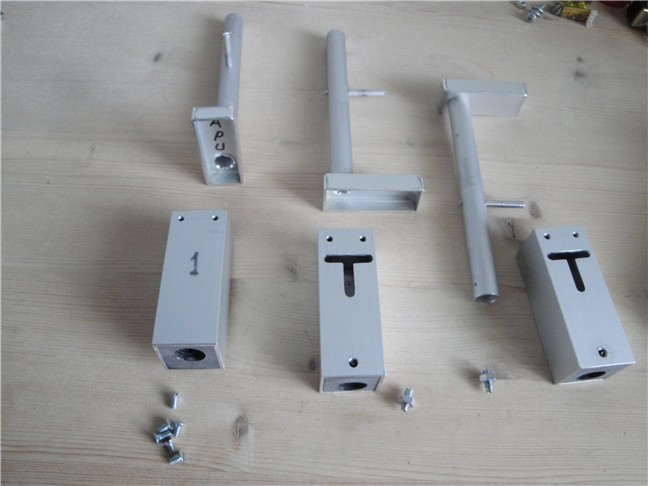

Fire handles made of 12mm alu tube and 10x19 mm U-profile.

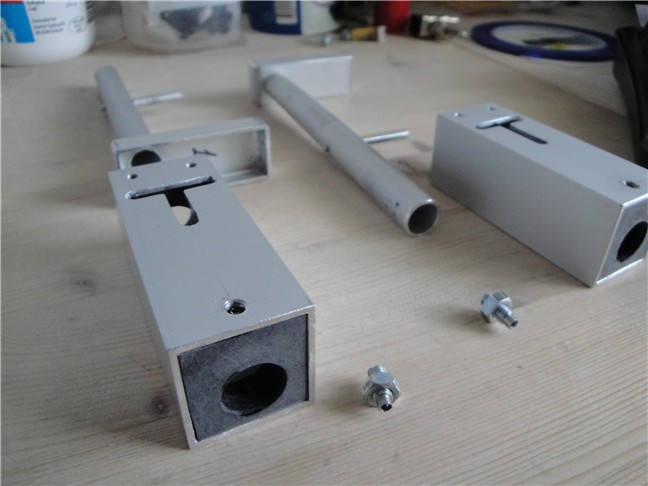

Housing in 25x25 mm alu tube with nylon bearings

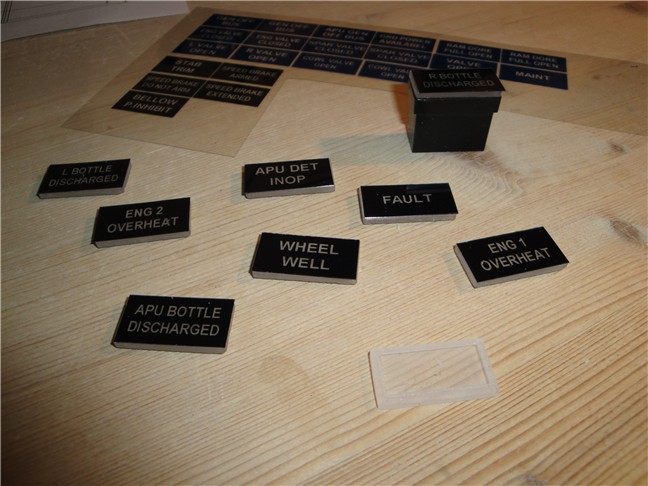

Indicator text mirror printed on transparency films

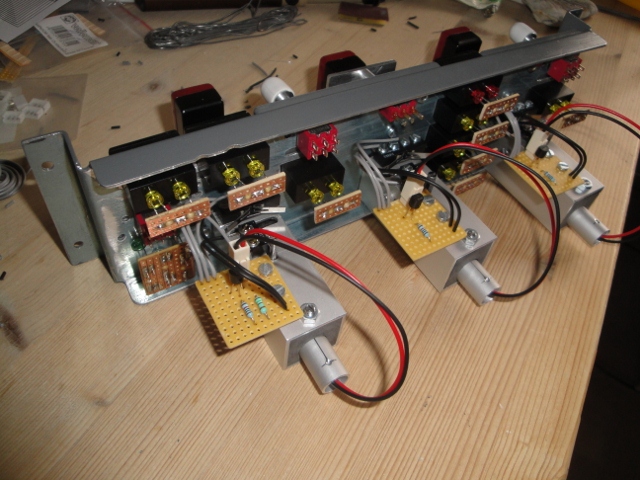

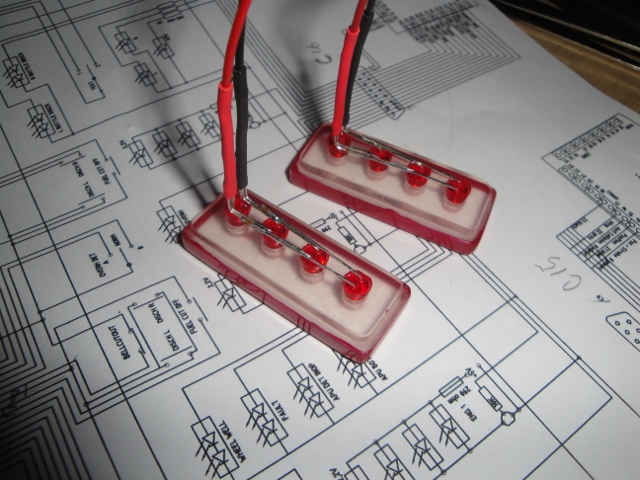

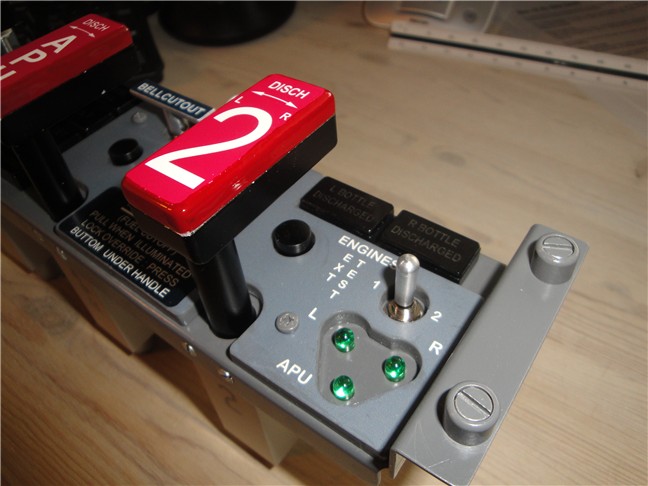

Because max. output current of the OC Master Card is about 25 mA a little circuit board with a 100 mA transistor drives the four led lights in the handle.

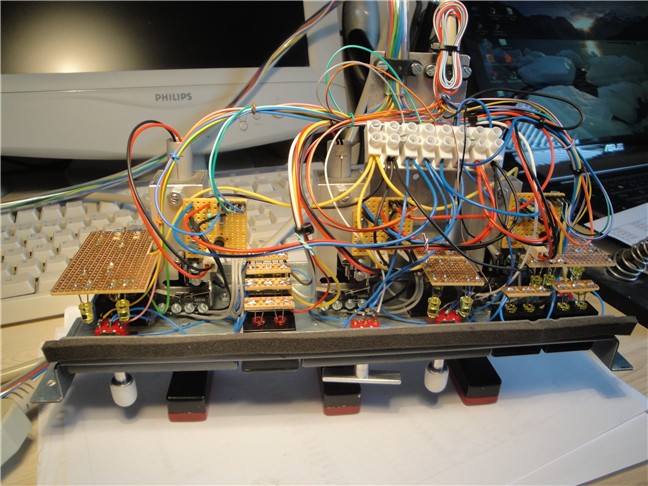

"spaghetti" wiring but the Panel works fine with Prosim now (April 2014).
