Pedestal  Bay       Build: 2010 -11                                               Last update: Apr. 2025

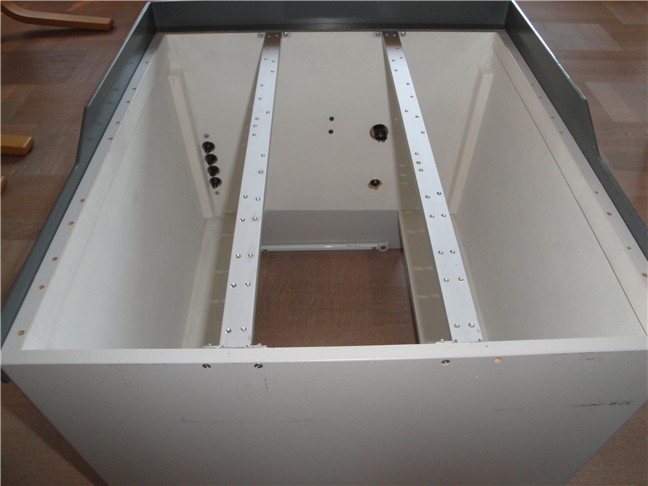

Bay is build of 10 mm MDF. Mounting rails alu. U-profile10x20 mm

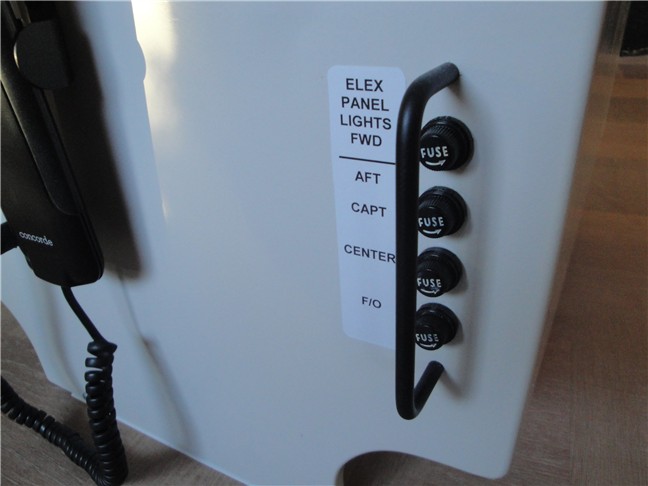

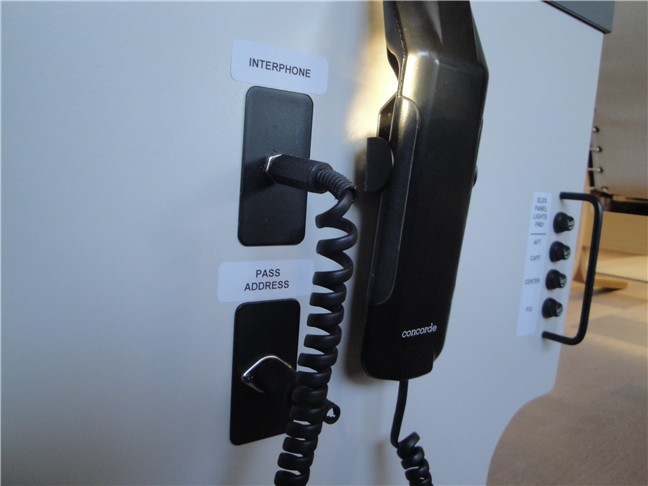

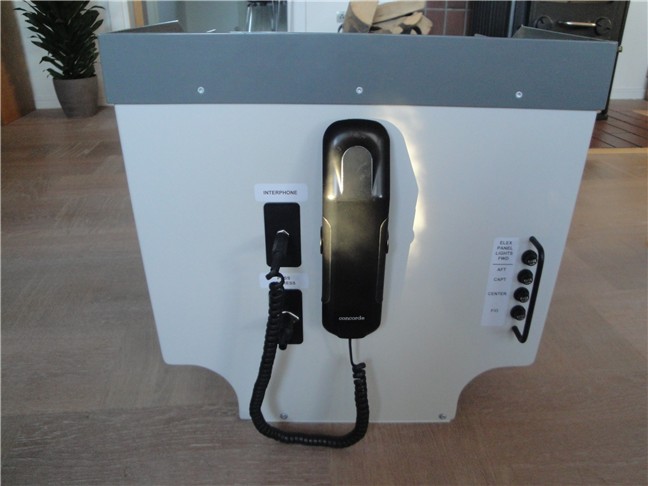

Interphone (dummy)

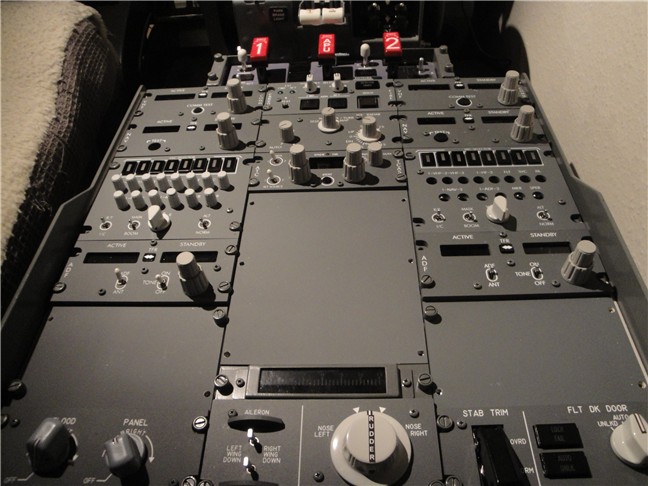

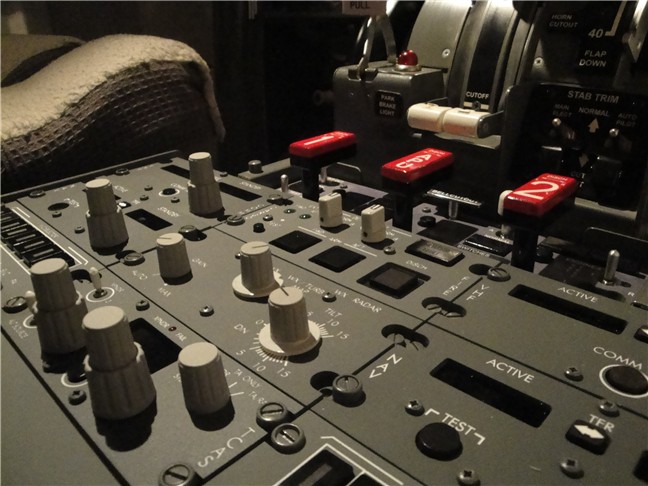

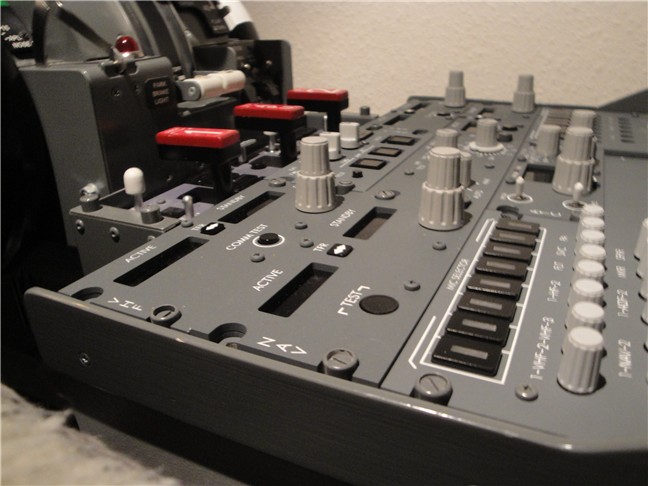

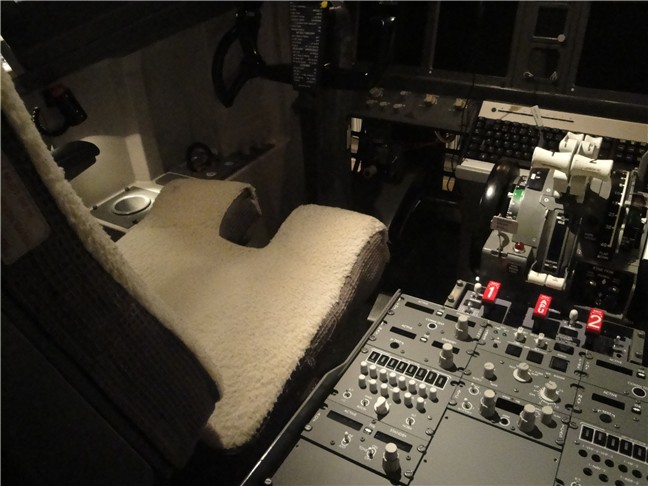

Dec. 2013 Pedestal Bay equip with VHF 1, NAV 1, ADF 1 and ATC-modules from Opencockpits. Number 2 radios (dummy) and the other panels are also from OC. Cargo Fire, Rudder Trim, Stab. Trim and Light Panels will be working over time.

Audio panel (dummy)

WX Radar panel (dummy)

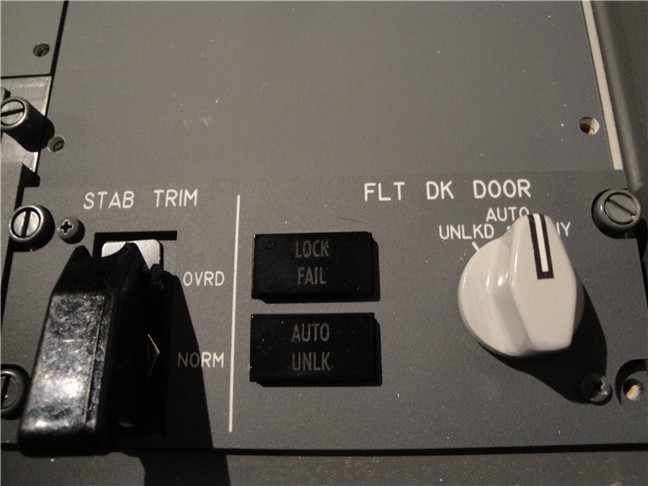

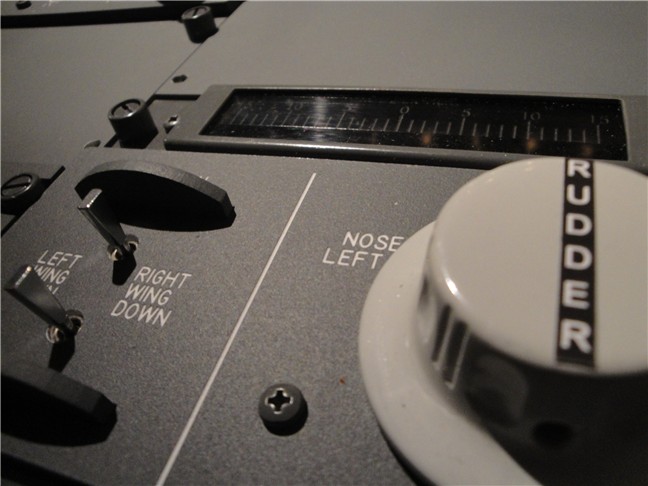

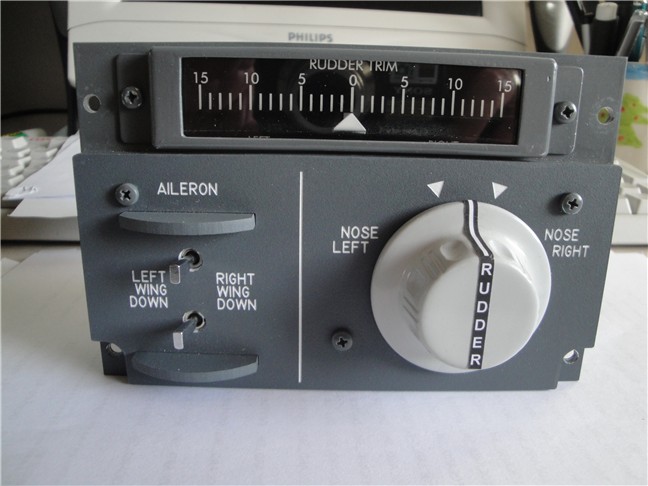

Rudder Trim Panel modified with new home made indicator housing and knob made of wood.

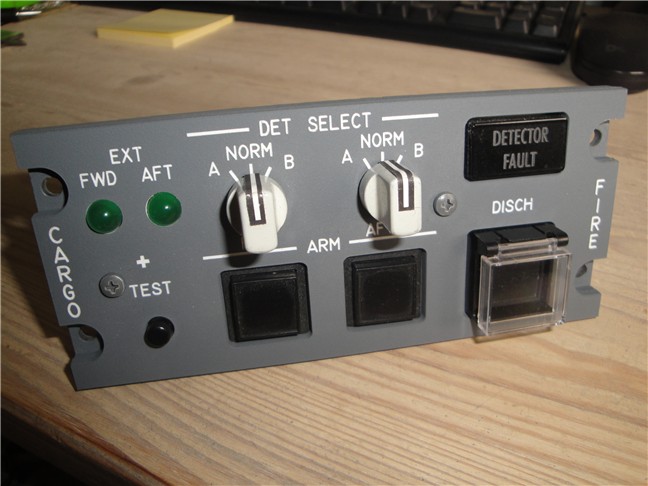

Cargo Fire panel. Knobs are home made of wood (beech)

Rudder Trim Indicator working (Mar. 2014)

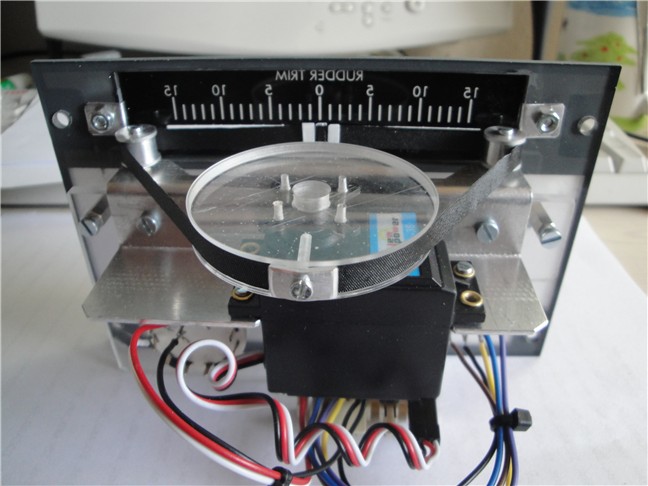

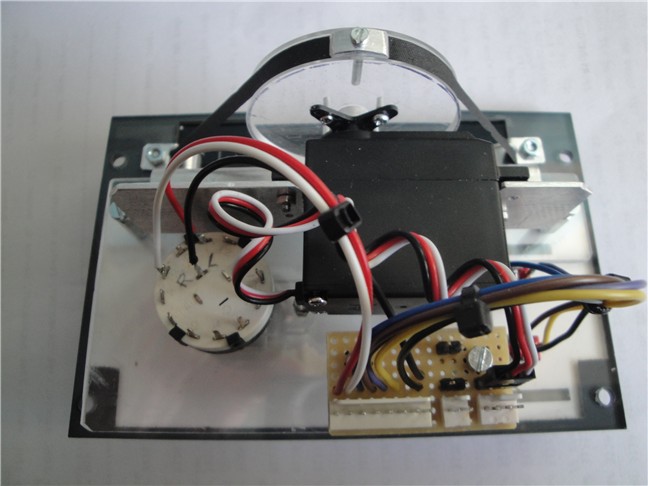

Backside with servo motor and pointer mechanism.

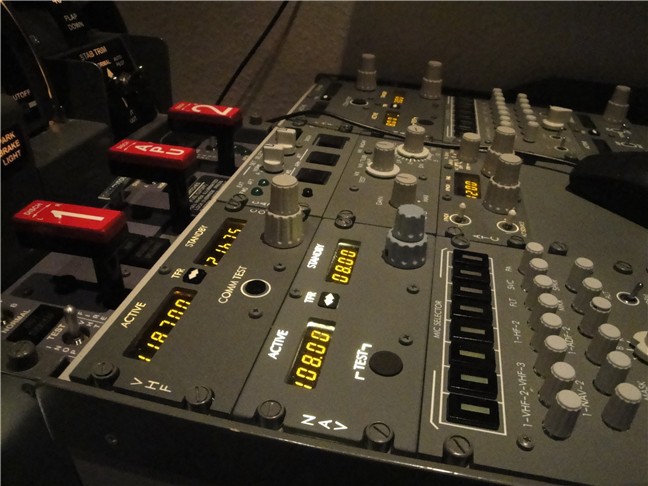

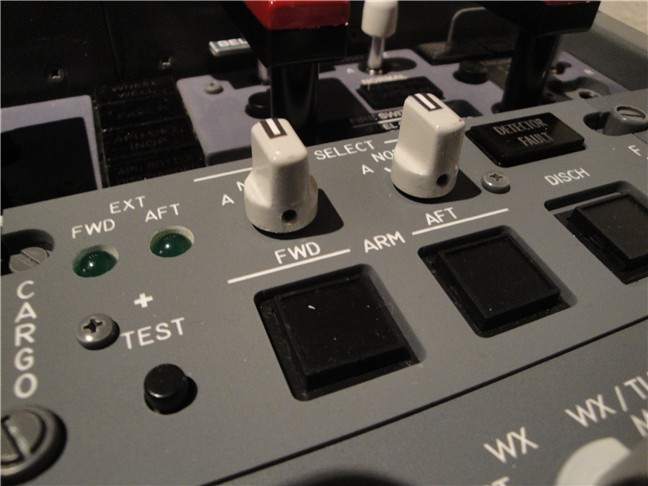

The new NAV radio module from OC. Note the new knob design, rounded edges and warm white background light

Note the little modification (2017) a protection cap on the DISCH button.
I could only find caps with a round hole so I have to file into shape to fit my square contact.

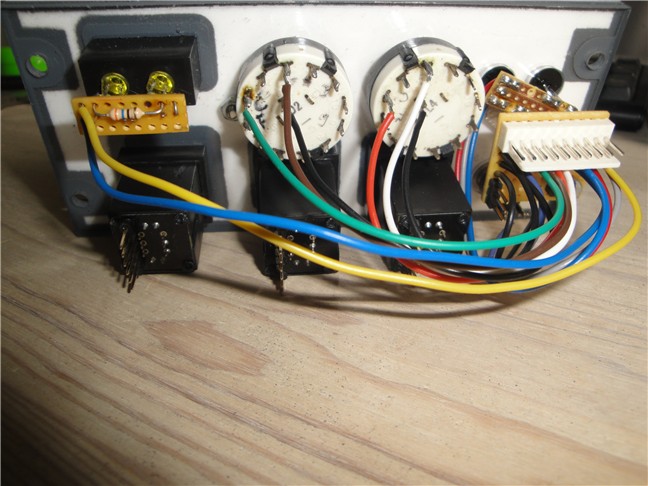

Cargo fire panel from back side.

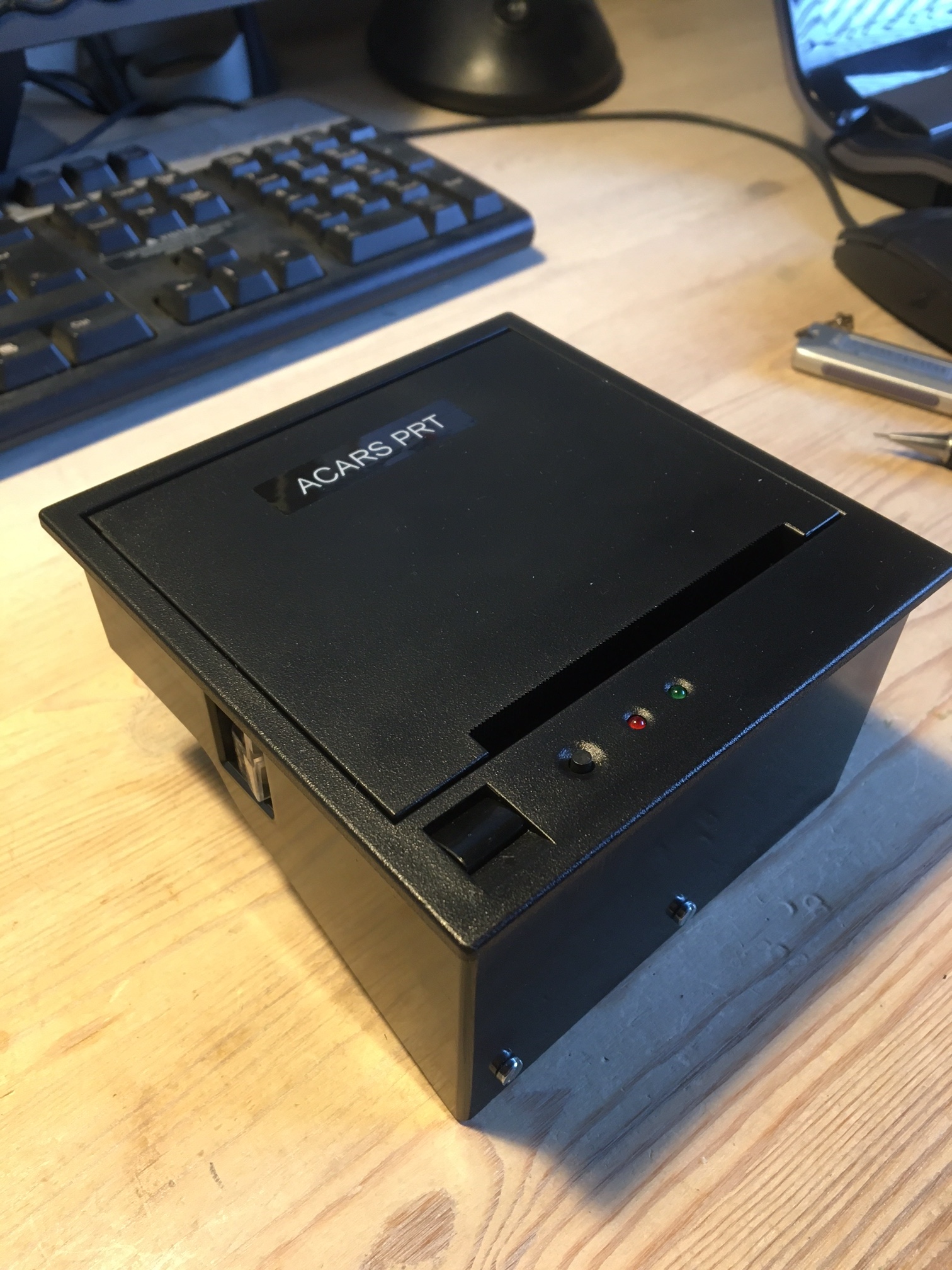

Thermal panel printer 3 inch 12V model HS-E80 bought from AliExpress
Paper size 80mm x ø50mm

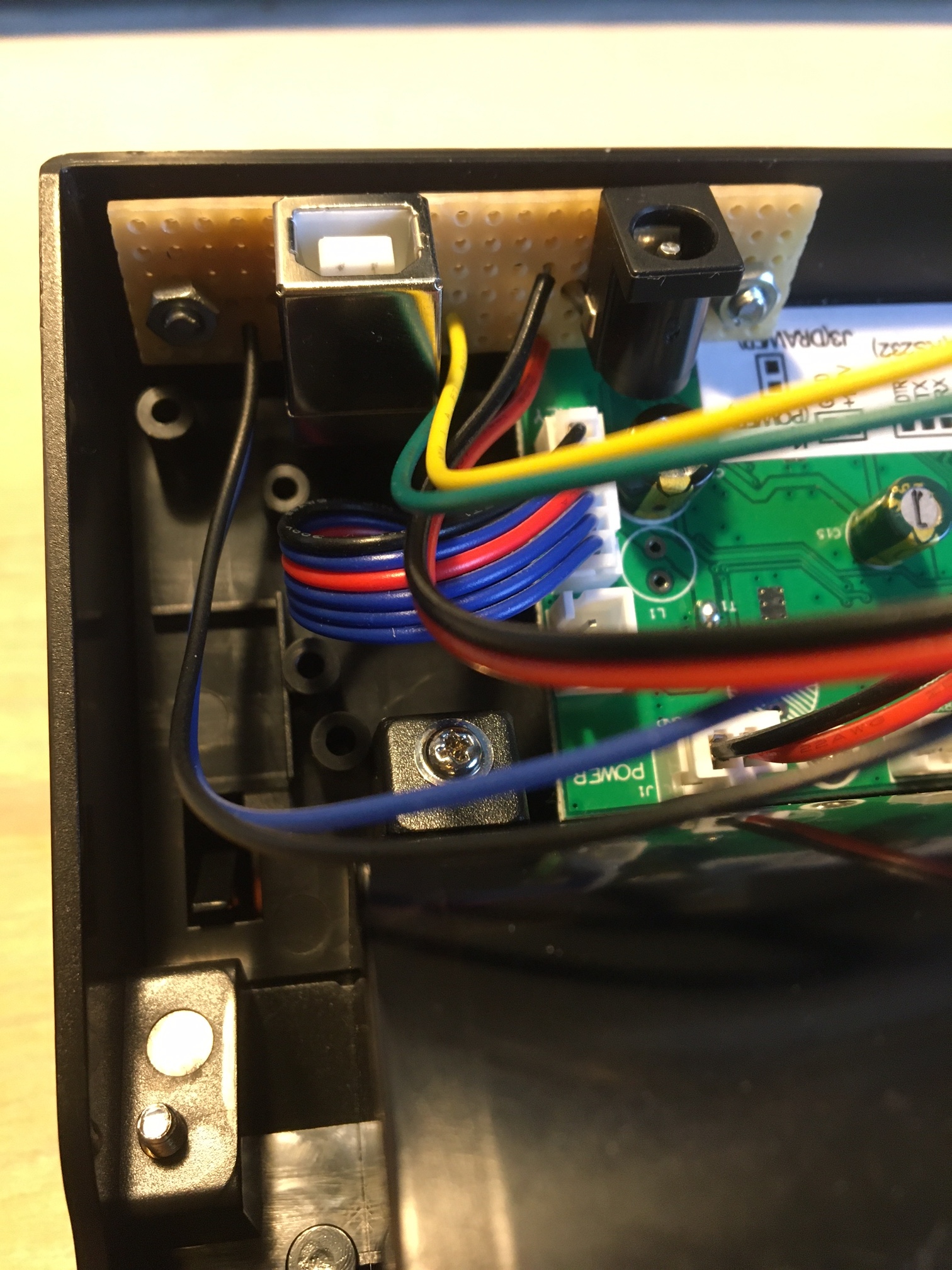

The printer was not equipped with a standard USB connector so I had to install the USB and also a 12V connector myself.

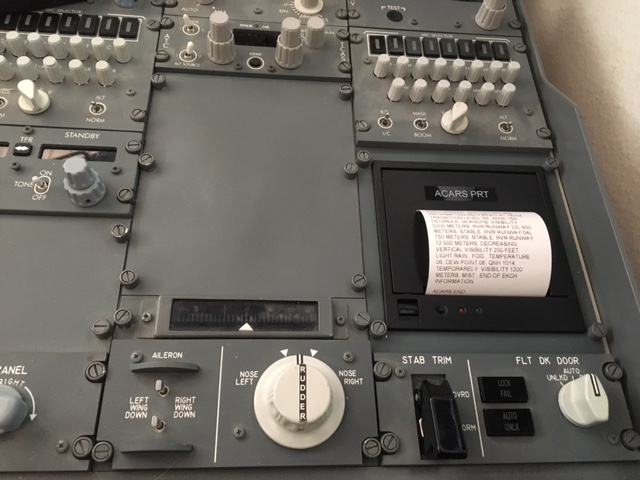

ACARS-printer just fit the pedestal bay

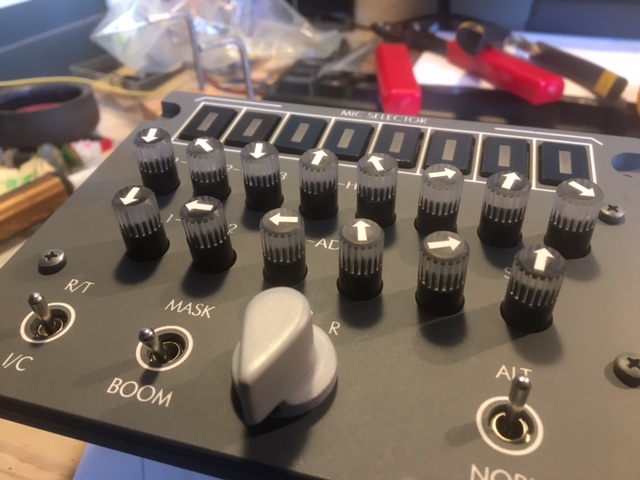

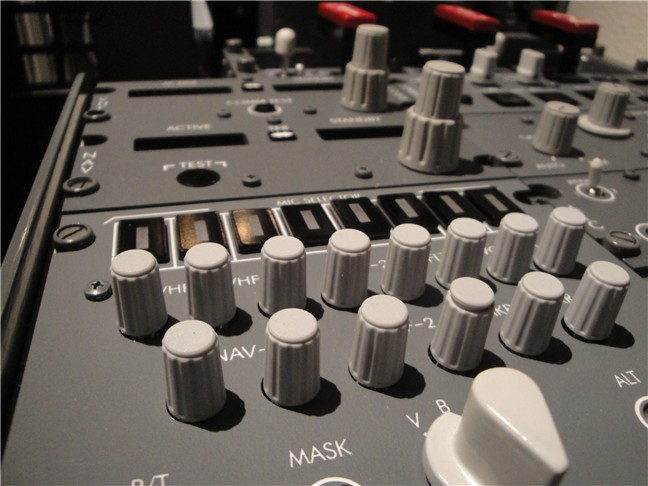

Audio panel equipped with new more realistic volume buttons. You can by them but they are expensive.
I made them myself out of a 12 mm acrylic rod on my small lathe.

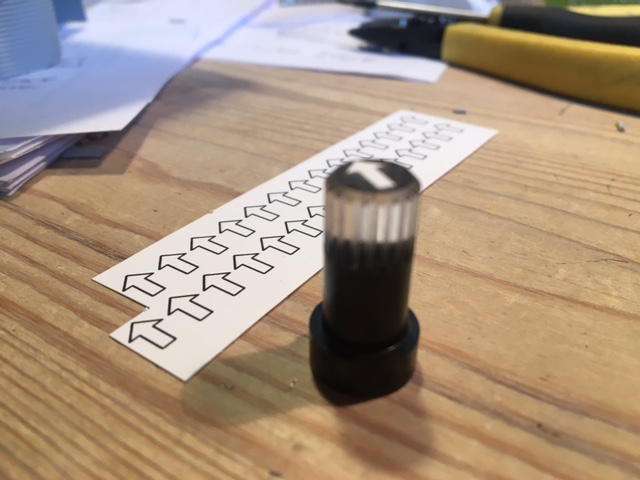

Button painted and equipped with an arrow. There are a total of 3x14 buttons so it took a while.
