ATC- Sound in Over Head Speaker  (Nov.2020)

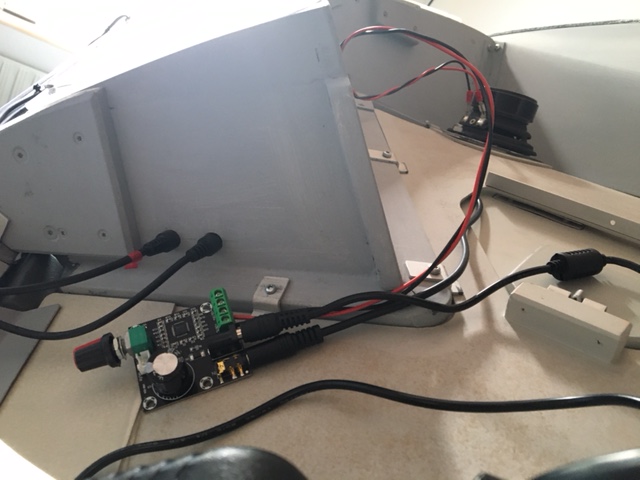

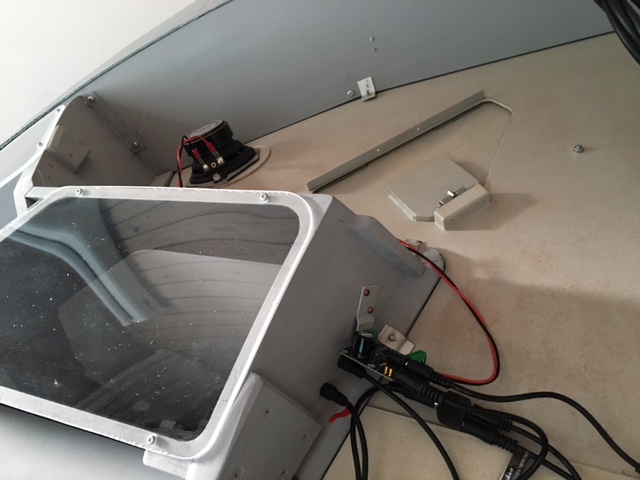

A little 12V 15W  amplifier connected parallel to my headset gives me ATC-sound in an old car-speaker mounted in the ceiling.
I use a USB sound card for ATC- sound only.

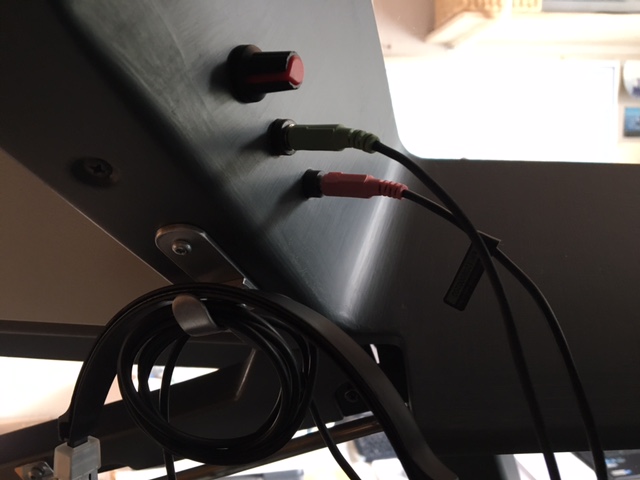

The OH-Speaker sound volume can be adjust and turned off.

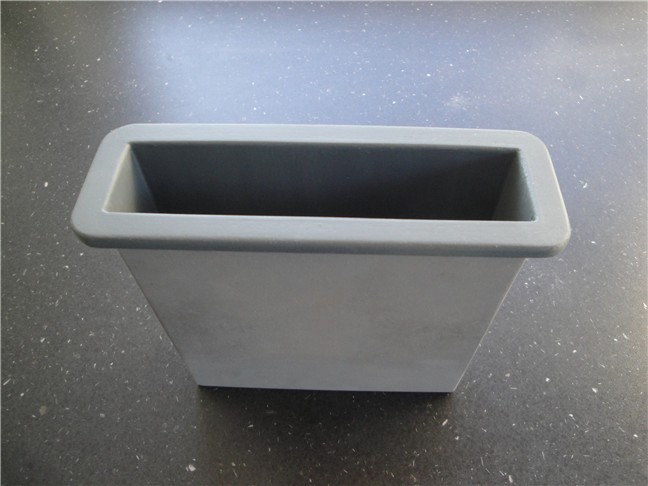

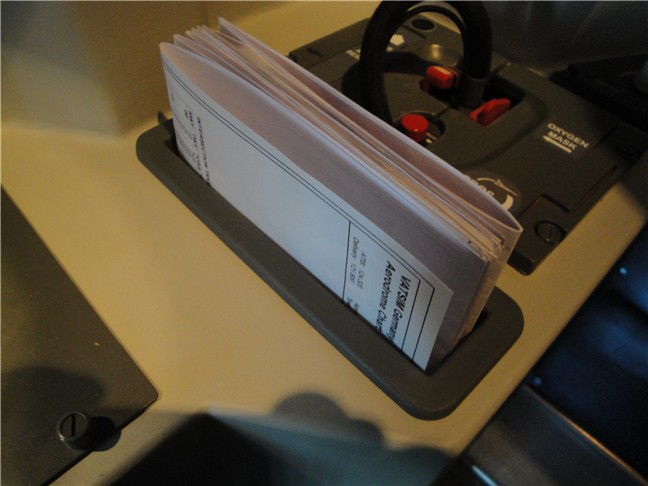

DOCUMENT POCKETS  left Side Wall and Throttle Pedestal (May 2019)

Top frame and bottom in 6 mm MDF . Walls in 2,5 mm MDF
Frame outside  180 x 60 mm. Inside 154 x 36 mm. Deep of pocket 162 mm

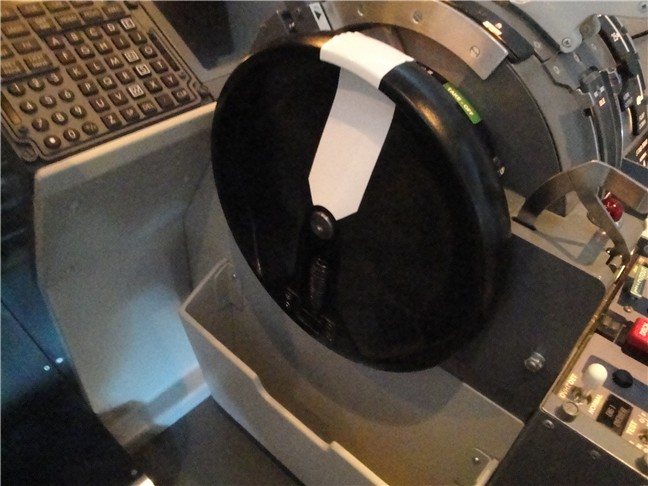

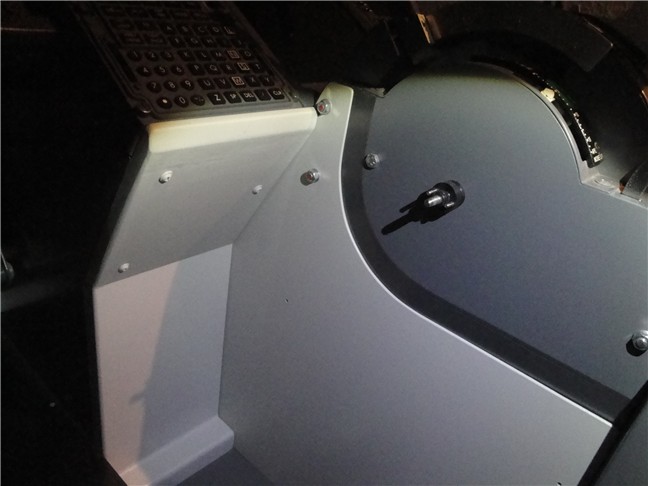

Pocket for the Throttle pedestal made in 6 mm MDF.
Dimension  (outside) 320 x 195 x 66/38 mm

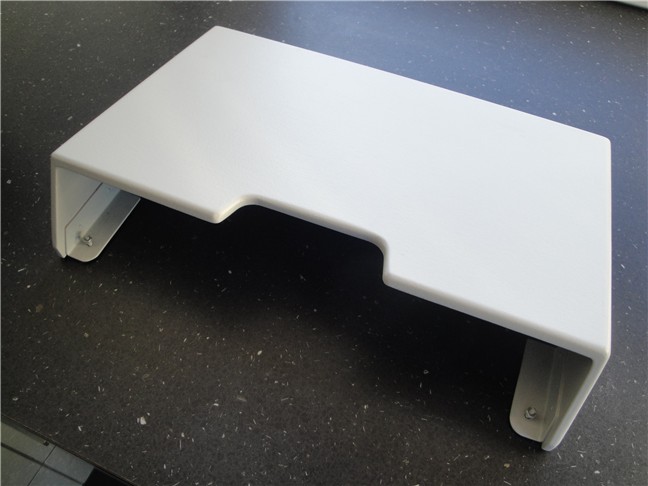

Throttle Cover in 2,5 mm MDF

RUDDER PEDAL ADJUSTING (Aug. 2018)

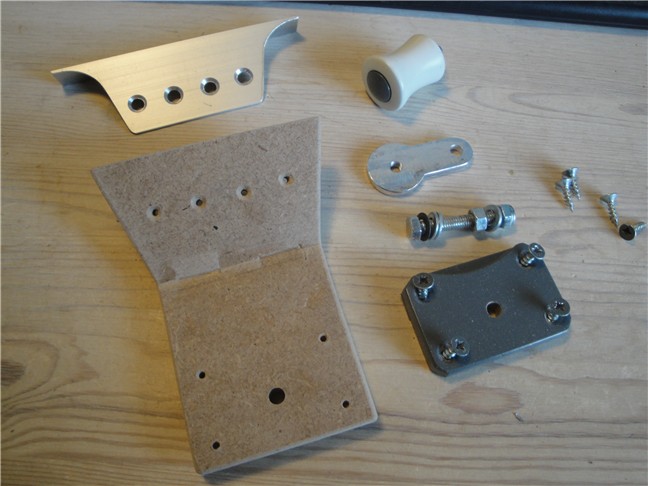

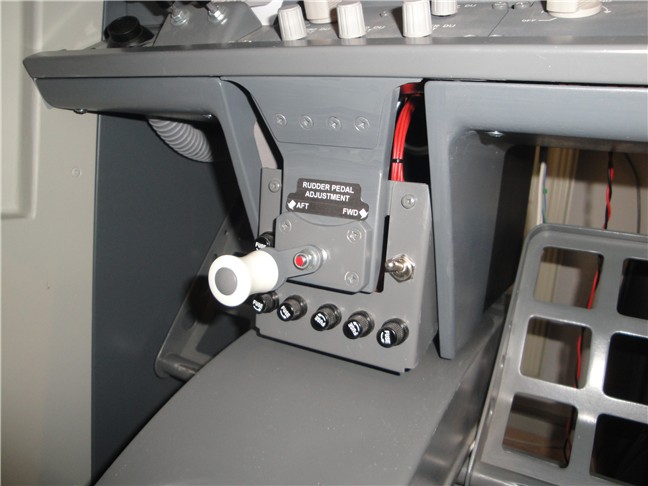

Parts for the rebuild rudder pedal adjustment handle (dummy)

New Liners to hide and protect the wires under the light panel and behind the fuse panel

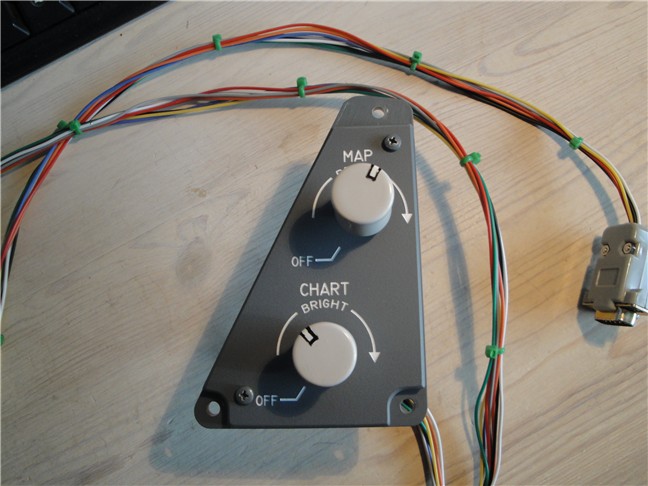

MAP-CHART Light panel (Feb. 2016)

Rebuild with light panel from Opencockpits. Panels modified a little to fit my old side panel.

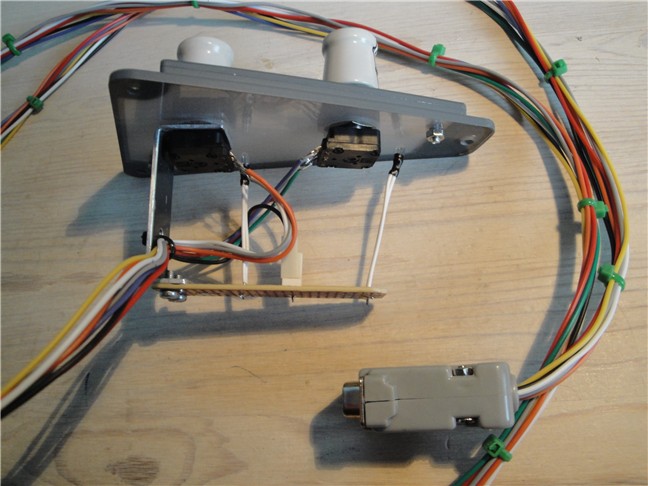

Back of the panel with  bulbs for background lightning.

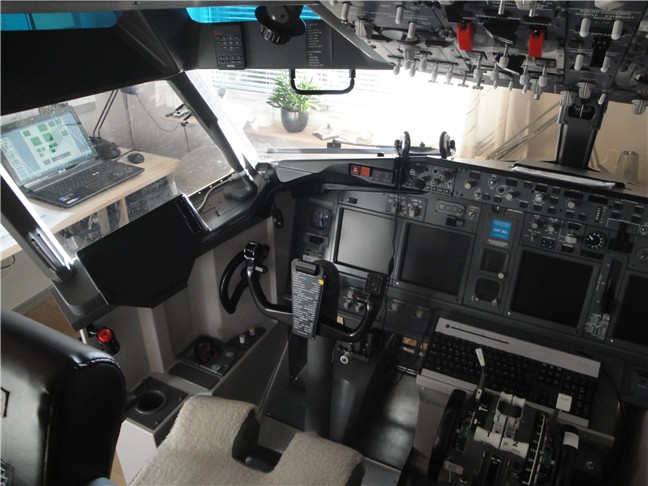

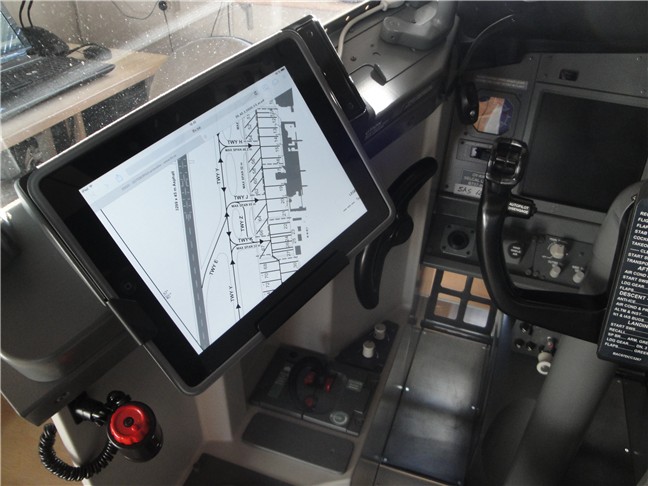

iPAD Tray  (Feb. 2014)

More and more Ipad's  take place in the cockpits. It is very useful as EFB (Electronic Flight Bag) and save maybe 15 kg of paper charts on every flight. In my simulator I also use it for Prosim Instructor Station weather information and as Flight Management Computer until I hopefully get a hardware FMC in the future.

You have always the newest maps and don´t have to print new charts at updating.

My iPAD tray is fixed but it can also be used for normal paper charts and It does not disturb my work in the cockpit.

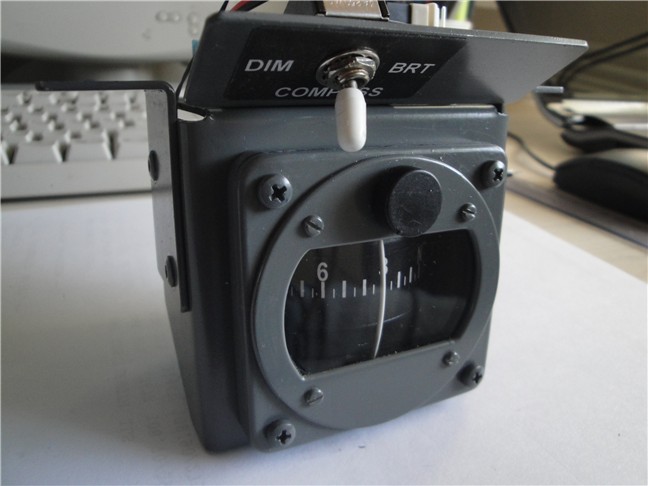

Magnetic standby Compass (Dec. 2013)

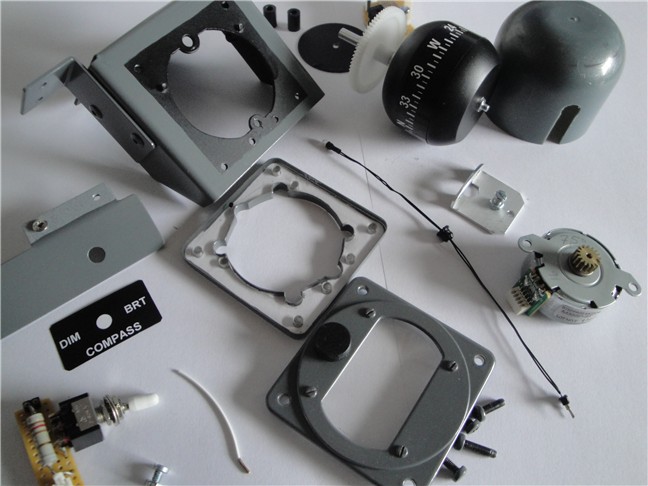

Compass parts ready for assembly

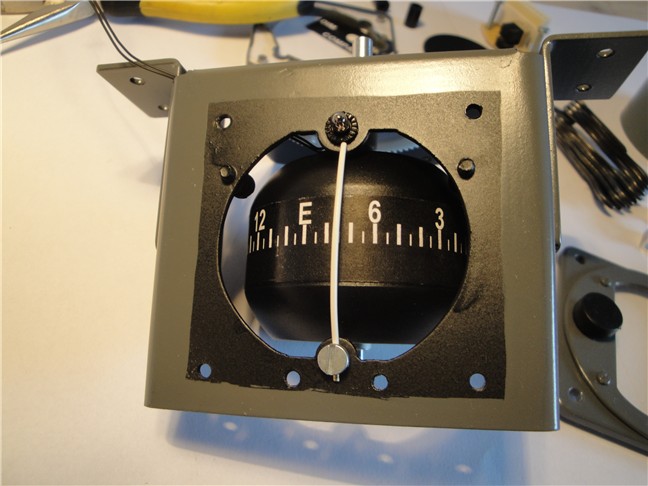

Compass card is designed in a photo program and printed

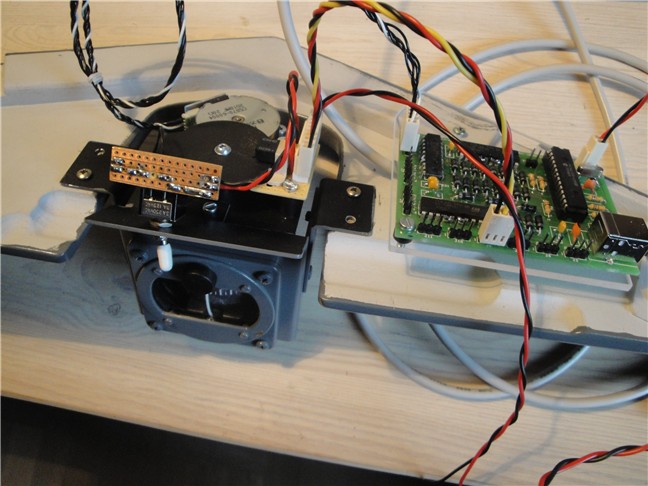

Gear reduce the stepper motor 7.5 deg./step to 1.6 deg./step ( with half steep 0.8 deg./step)

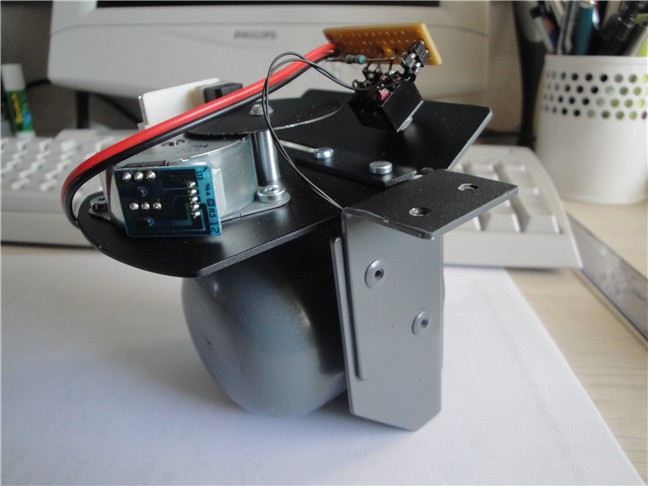

Stepper motor and optical sensor from an old  printer.

To control the motor I use USB stepper motor card from OC.

Oxygen (Dec. 2012)

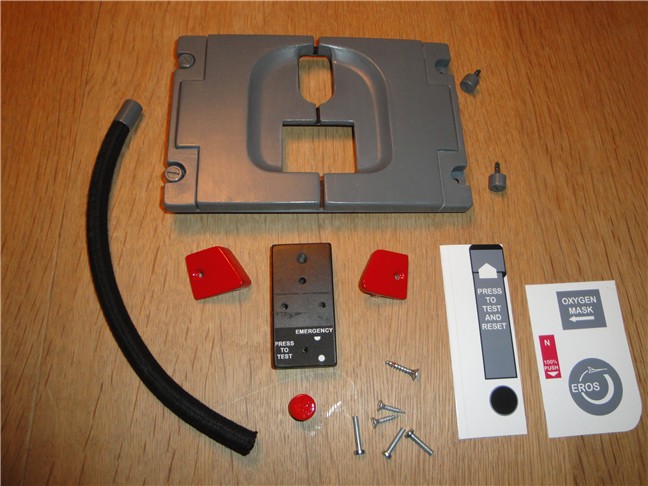

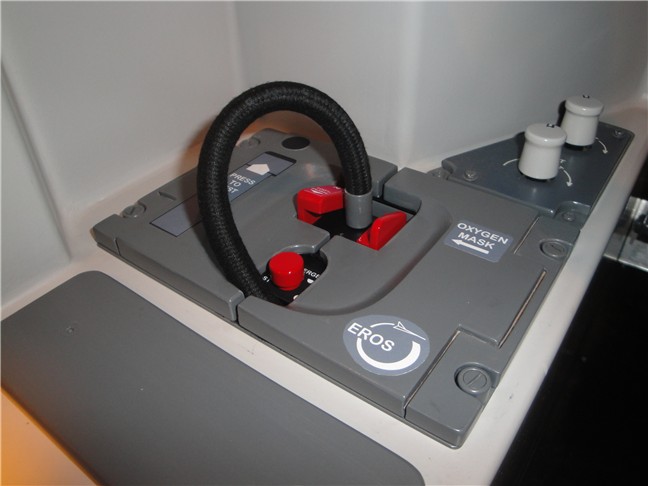

Close up of the oxygen equipment

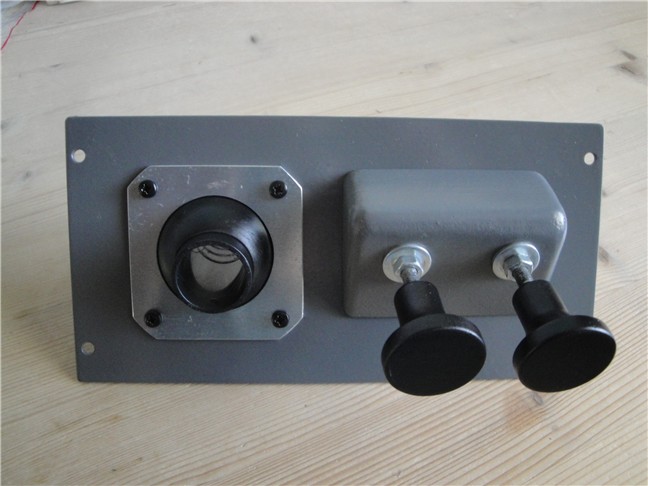

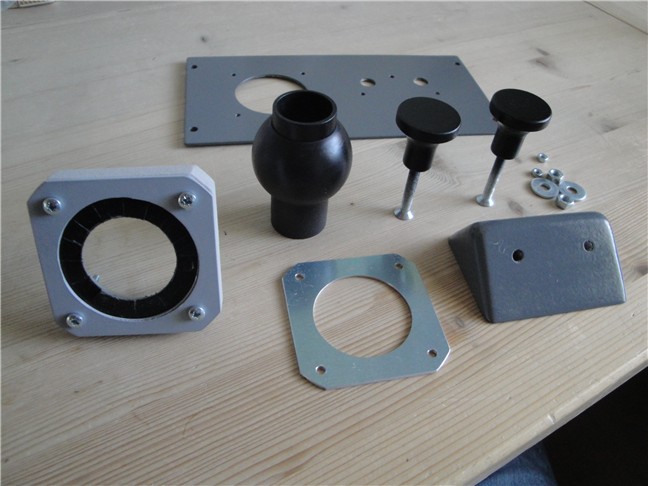

Fresh air panel (Dec. 2012)

Assembled panel.  "FOOT AIR" and "WINDSHIELD AIR" decals are missing.

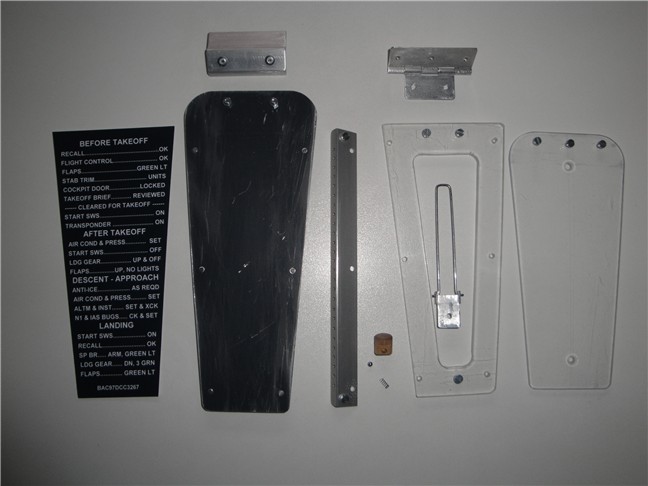

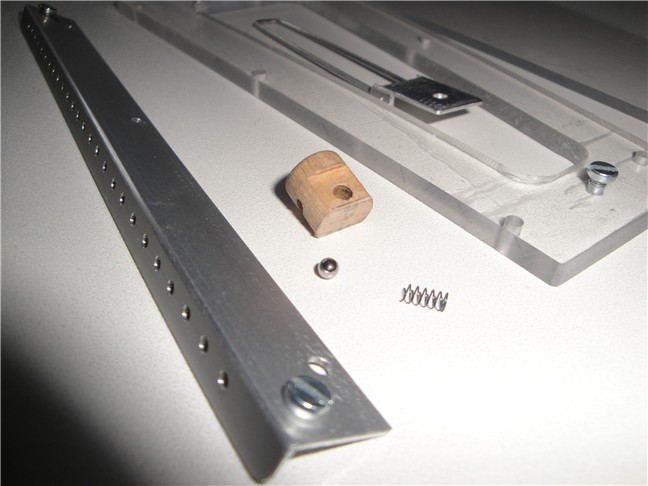

Check board (Dec. 2012)

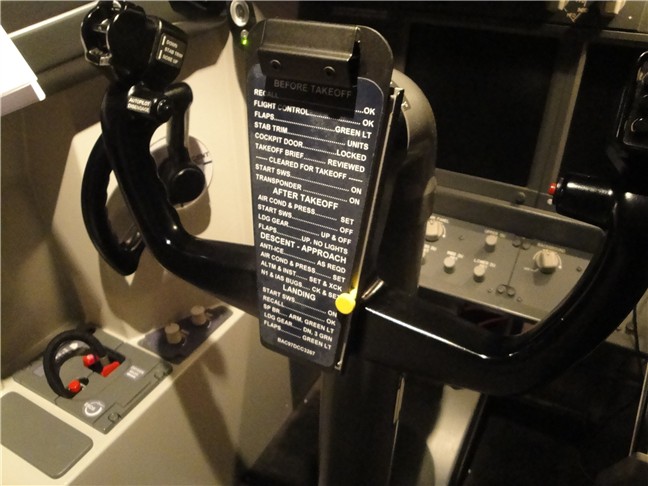

Check Board on its place in the cockpit

Wiper (Dec. 2012)

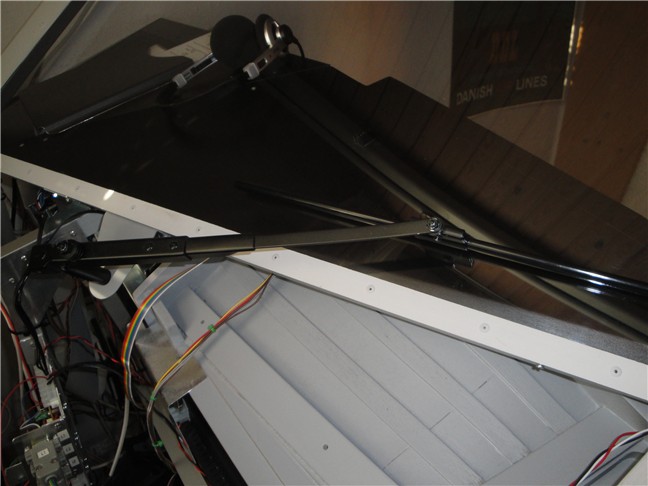

Wiper (not working).
Don't laugh. Actually it is the part of the simulator that is most in your field of vision during taxiing, takeoff and landing.
